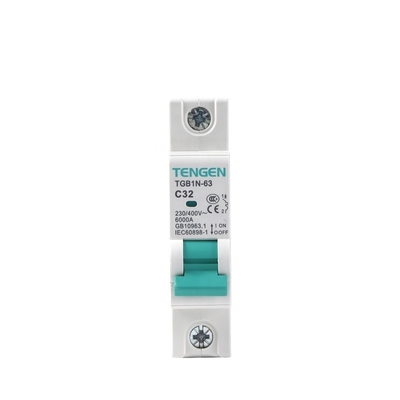

TENGEN Factory Sale Original Type Single Phase 32A Micro Pole Circuit Breaker 1 For Home 6kA

15 Pieces
MOQ
$0.90(15 - 499 Pieces) $0.80(500 - 4999 Pieces) $0.70(>=5000 Pieces)
Price
TENGEN Factory Sale Original Type Single Phase 32A Micro Pole Circuit Breaker 1 For Home 6kA
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: TGB1N-63 1P C32
Rated Current: 32A
Rated Voltage: AC 230V/400
Frequency: 50/60Hz
Breaking Capacity: 6kA
Certificate: CE/CCC
Standard: IEC60898-1/GB10963.1
Installation: Din Rail Installation
Type: Mini
Poles Number: 1
Basic Infomation
Certification: CE/CCC
Model Number: TGB1N-63 1P C32
Payment & Shipping Terms
Packaging Details: Cartoon
Supply Ability: 300000 Piece/Pieces per Month
Product Description
Products Description
TGB1N-63 series miniature circuit breaker is mainly used for overload and short circuit protection of power line facilities and electrical equipment in household and similar places, and can also be used for infrequent on-off operation. Especially suitable for industrial and commercial lighting distribution system.
Product Paramenters
Model
TGB1N-63 Series
Standard
IEC60898-1 GB/T10963.1
Certification
CE/CCC
Poles
1P/1P+N/2P/3P/3P+N/4P
Rated Frequency(Hz)
50/60 Hz
Frame Degree Rated Current(A)     Inm
63A
Rated Current(A)      Ie
1A/2A/3A/4A/5A/6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated Voltage(V)     Ue
AC 230/400V
Rated Insulation Voltage(V)     Ui
690V
Rated Impact voltage(kV)      Uimp
4kV
Rated short circuit breaking capacity(kA)    lcn
6kA


Tripping Curve
B(3In~5In)
C(5In~10In)
D(10In~14In)
Trip Type
Thermal-magnetic
Electrical Life(times)
10000 times
Mechanical Life(times)
20000 times
IP Grade
IP 20
Ambient temperature(℃)
-35℃~+70℃
Installation altitude(m)
No more than 2000m
Related Product
Details Images
Why Choose Us
Flame Resistant Material
Multi detection flame-retardant material, high temperature resistance, strong flame-retardant, prevent yellowing, more safe and reliable

Sealed Terminal

Thermosetting material,no melting point,no burning,more secure.

"D" Type Handle

The handle is made of high-quality materials, corrosion-resistant and durable

ON/OFF indicator

Green indicates normal operation, red indicates fault tripping.Easy to understandand faults can be found in time

Easy Installation

Rail mounting,no tools required, easy to install
