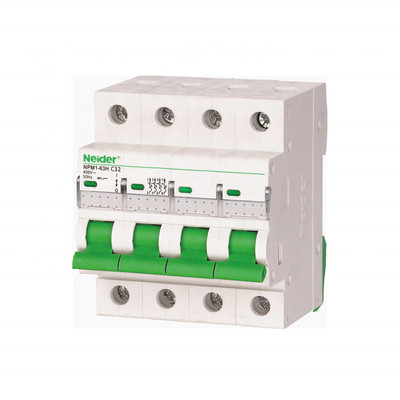

Name: High Breaking Capacity NPM1-63H C32 32A 4 Pole Miniature Circuit Breaker MCB 6000A
Brand: High Breaking Capacity NPM1-63H C32 32A 4 Pole Miniature Circuit Breaker MCB 6000A
SKU: NPM1-63H
Price: 1 USD
Availability: InStock
Rating: 5 (143 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: NPM1-63H

Product Name: MCB Miniature Circuit Breaker

Rated Current: 1A~63A

Rated Voltage: 230V/400V

Color: White

Breaking Capacity: 6000A

Electrical Life(Time): 4000

Mounting: Din Rail

Standard: GB10963

Certificate: CE,CB, CCC,ROHS

Warranty: 2 Years

Type: Mini

Poles Number: 4

Basic Infomation

Certification: CE,CB, CCC,ROHS

Model Number: NPM1-63H

Payment & Shipping Terms

Packaging Details: Standard export packing

Supply Ability: 10000 Piece/Pieces per Month

Product Description

NPM1-63H series miniature circuit breaker is developed on basis of NPM1-63 series. It is made of ABS plastic shell, operation mechanism, contact arc extinguishing system,shunt trip gear, etc. The shell is made of the plastic of high flame retardant and high strength, which is very strong and light. And the plastic parts of the operating mechanism are made of high-strength plastic, which obtains the lowest moment of inertia while ensuring sensitivity and reliability, so that it can make the trip mechanism action time very short when short-circuit failure happens. The tripping mechanism is composed of bimetallic sheet overload. the timer tripping mechanism and the short-circuit instantaneous limit electromagnetic tripping mechanism constitute the two-stage protection. The contact arc extinguishing system uses a special arc guide angle and arc extinguishing chamber

Specification

Characteristics:

1.High breaking capacity, small dimension, covenient installation

2.Reliable peforemance, fast response, free maintance.

3.With full series of contact indication

4.Woring enviroment:-5℃~+40℃; Altitude: ≤2000m

5.CE, ROHS, CCC, CB certificates

Technical parameter:

Rated Current(A)	No.of Poles (P)	Rated Voltage (V)	Breaking Capacity (A)	Instantaneous Trip	Instaneous Protection Current Range
1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63	1, 2, 3, 4	230/400	6000	B	3In< 1 ≤ 15In
						C	5In< 1 ≤ 10In
						D	10In< 1 ≤ 14In

It's the product you are looking for, please click it to send an inquiry.

Packing & Delivery

Standard export packing; color box inside, standard export mother carton outside
