FG60-63 Silver Contact Miniature Circuit Breakers MCB 63A 6KA

12 Pieces
MOQ
$0.83(12 - 49 Pieces) $0.79(50 - 99 Pieces) $0.76(100 - 499 Pieces) $0.72(>=500 Pieces)
Price

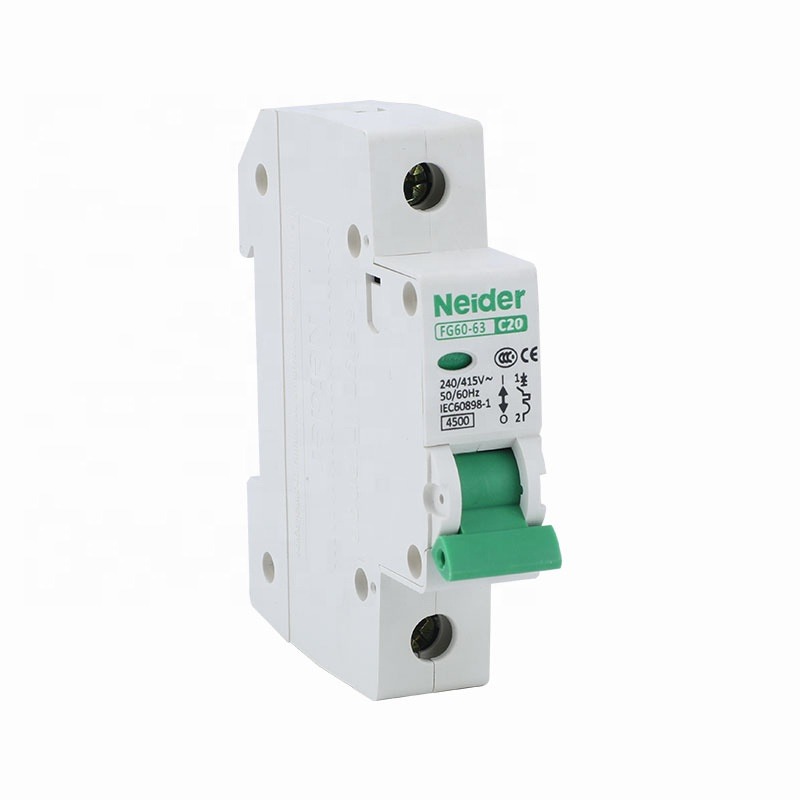

FG60-63 Silver Contact Miniature Circuit Breakers MCB 63A 6KA
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: FG60-63/1P
Breaking Capacity: 6KA
Rated Voltage: 230/400V-240/415V
Rated Current: 63A
Product Name: MCB Miniature Circuit Breaker
Mechanical Life: 10000 Cycles
Electrical Life: 4000 Cycles
Protection: Overload & Short-circuit
Color: White
Type: Mini
Poles Number: 1
Rated Frequency: 50/60hz
Standard: IEC60898-1, IEC60947-2
Warranty: 3 Years
Basic Infomation
Model Number: FG60-63/1P
Payment & Shipping Terms
Product Description
Product Description
FG60-63 mini circuit breaker is mainly suitable for avoiding overload and short circuit. It is especially used in illumination and distribution system of industry and commerce. It has advantages of long life, small and exquisite appearance,favorable and credible capability,and high breaking capacity. The shell and parts are made of fire-resistance and shock-resistance plastic. This product complies with IEC60898 & IEC60947, CE, CB, etc.
Besides, it is mainly used for avoiding short circuit of AC 60Hz rated voltage of single pole 240V and two, three of four poles 415V circuit. It can also be set for infrequent switching on and off the electrical equipments and illumination circuit normal condition.

Characteristics:

1. Made of high flame retardant plastic shell,operation mechanism, arc extinguishing system, shunt tripping gear, etc.
2.High breaking capacity, small size and convenient to install.
3.Reliable,quick action, and free maintenance.
4.Woring enviroment:-5℃~+40℃; Altitude: ≤2000m.
Specification
Model
FG60-63/1P
Standards
IEC60898-1, IEC60947-2
Rated Current(A)
6, 10, 16, 20, 25, 32, 40, 50, 63
No. Of Pole
1
Rated Voltage(V)
230/400~240/415
Frequency(Hz)
50/60
Breaking Capacity(kA)
6
Rated Impulse Withstand Voltage(V)
4000
Electrical Life(Circle)
4000
Mechanical Life(Circle)
10000
Characteristic
B, C, D
Mounting
Din rail EN60715
Connection
Cable/Pin-Type Bus Bar
Auxiliary Contact
Optional
Shunt Release
Optional
Under Voltage Release
Optional
Alarm Contact
Optional
Protection
Short Circuit & Overload
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Suzhou Liangxin Electrical Co., Ltd. is a private joint-stock enterprise , with its head office located in the beautiful landscape garden city Suzhou where is titled as the Oriental Venice, definite address in Huangqiao Industrial Zone, Xiangcheng District, enjoying unique geographical advantage and convenient traffic. As a professional manufacturer of circuit breakers(MCB, MCCB, ACB), the company has modern workshops, advanced production equipments, strong technical force and rich talent pool. So, OEM and ODM are both OK for us. Liangxin has passed ISO9001-2000 quality management system certification. The products have gained the China Quality Certification Center Safety Quality Certification (CCC), ROHS, CE and CB authentication. With perfect quality assurance system, we have been one of the key enterprises specialized in the production of low voltage products. With regional sales and service centers establishments in 21 cities(Shanghai, Beijing, Guangzhou, Shenzhen, etc), we can provide all-around services for domestic users. And with products exported to many countries and regions including East Europe, West Europe, South America, Middle East, and Southeast Asia, and good after-sale service, we have high reputation among clients. Liangxin people always adhere to the "first-class products, first-class management, first-class service " business ideas for the company. We wish with vast clients hand in hand , to advance with the times, and to create better future together .
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2007,sell to Domestic Market(49.00%),Eastern Europe(15.00%),Western Europe(12.00%),South Asia(10.00%),South America(8.00%),Mid East(6.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
MCB,MCCB,ACB,Distribution Box,AC contactor

4. why should you buy from us not from other suppliers?
More than 10 years experience in circuit breaker (MCB, MCCB, ACB) production; Have modern workshops & advanced production equipments; Have strong technical force to develop and design circuit breaker; To be supplier of State grid for 5 years

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
