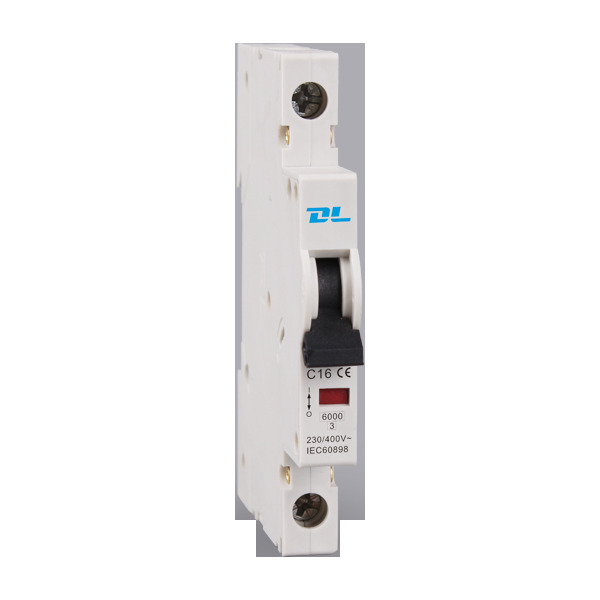

DL 9mm MCB Micro breaker mini Miniature Circuit Breaker
| TYPE | CERTIFICATE | STANDARD |
| DL9-40 | SAA | AS/NZS |
Features and Advantages
1 The real 6kA Micro Circuit Breaker in world.
the slimmest, patented, and reliable circuit breaker.
2 Genuine 6kA fault level
after hundreds of seriously passed test.
suit both residential and commercial applications.
3 Half module(9mm) is ideal to save valuable switchboard space.
Required by more and more electrical compliance, the household
also need more and more circuit breaker to protect.
4 All accessories available.
All normal used accessories, such as contact, alarm, over-unver
voltage protector, shunt release, are available for this micro circuit breaker;
210 years R&D, wholely patent protected
5 Easy to comply with a RCD or RCBO.
B, C Tripping curve(see graphics 1):
6Instantaneous tripping current:
B curve: 3In~5In, Circuits with low inductive load;
C curve: 5In~10In, Circuits with low inductive load or highly inductive illumination system;
D curve: 10In ~ 20In, Circuits with high inductive load or electric distribution system with high surge current
B, C Tripping curve(see graphics 1):
7Instantaneous tripping current:
B curve: 3In~5In, Circuits with low inductive load;
C curve: 5In~10In, Circuits with low inductive load or highly inductive
illumination system;
D curve: 10In ~ 20In, Circuits with high inductive load or electric
distribution system with high surge current
Technical Data
| Standards | AS/NZ 61898 - 1 |
| Poles | 1, 1P+N, 2, 3, 3P+N, 4P |
| Magnetic tripping characteristics | B,C |
| Rated current | 6 10 16 20 25 32 |
| Rated short-circuit capacity(Icn): | 3kA, 4.5kA, 6kA |
| Rated voltage | 230/400V |
| Frequency | 50/60 |
| Maximum service voltage | 264 |
| Contact position indication | Yes |
| Energy limiting class: | 3 |
| Electrical Life: | >6000 |
| Mechanical Life: | >15000 |
| Connection terminal: | Screw terminal |
| Pillar terminal with clamp | |
| Connection capacity: | 1~16mm |
| Installation: | Symmetrical DIN rail 35mm |
| Panel mounting | |
| Accessories: | OF: Auxiliary contact |
| FB: Auxiliary alarm | |
| QY: under/over volage protector | |
| FL: Shunt release |
Mirco Circuit Breaker / 9mm /FDMC-32
| Magnetic Tripping Characteristic |
Breaking Capacity (A) |
Rated Current (A) |
Cat. No. | |
| B,C curve |
B curve |
C curve |
||
| 6000 | 8 |
FDMC-32, B6, 6kA |
FDMC-32, C6, 6kA |
|
| 10 |
FDMC-32, B10, 6kA |
FDMC-32, C10, 6kA |
||
| 18 |
FDMC-32, B16, 6kA |
FDMC-32, C16, 6kA |
||
| 20 |
FDMC-32, B20, 6kA |
FDMC-32, C20, 6kA |
||
| 25 |
FDMC-32, B25, 6kA |
FDMC-32, C25, 6kA |
||
| 32 |
FDMC-32, B32, 6kA |
FDMC-32, C32, 6kA |
||
| 4500 | 8 |
FDMC-32, B6, 4.5kA |
FDMC-32, C6, 4.5kA |
|
| 10 |
FDMC-32, B10, 4.5kA |
FDMC-32, C10, 4.5kA |
||
| 18 |
FDMC-32, B16, 4.5kA |
FDMC-32, C16, 4.5kA |
||
| 20 |
FDMC-32, B20, 4.5kA |
FDMC-32, C20, 4.5kA |
||
| 25 |
FDMC-32, B25, 4.5kA |
FDMC-32, C25, 4.5kA |
||
| 32 |
FDMC-32, B32, 4.5kA |
FDMC-32, C32, 4.5kA |
||
| 3000 | 8 |
FDMC-32, B6, 3kA |
FDMC-32, C6, 3kA |
|
| 10 |
FDMC-32, B10, 3kA |
FDMC-32, C10, 3kA |
||
| 18 |
FDMC-32, B16, 3kA |
FDMC-32, C16, 3kA |
||
| 20 |
FDMC-32, B20, 3kA |
FDMC-32, C20, 3kA |
||
| 25 |
FDMC-32, B25, 3kA |
FDMC-32, C25, 3kA |
||
| 32 |
FDMC-32, B32, 3kA |
FDMC-32, C32, 3kA | ||
B, C Tripping curve(see graphics 1): DIN Rail:
