Mechanical/Environmental Data
Operating Ambient Temperature: -10℃ to +60℃
Mounting: Various options. See Ordering Information and drawings
Termination: 250’’(6.35mm)quick connects or solder terminals
Calibration(at25℃)
100% of Rated Current: Hold , No Trip 300% of Rated Current: 1.5-5.0 sec Trip •
200% of Rated Current: 5-30 sec Trip •
150% ofRated Current: Trip Within 1 Hour
Approval
Approval & File No. Rated current Rated voltage
CUL UL E155159 3-50A 125/250VAC; 50VDC
TUV SUD B15 09 58611 007 3-30A 125/250VAC; 32VDC
CCC 201101030752058 3-30A 125/250VAC.
VDE 40036160 3-16A 125/250VAC
CSA 102199 3-30A 125VAC
Typical applicationsTypical applications
Tarnsforms, Motors, Battery chargers, Power supplies
appliances, extra low voltage systems, machineryappliances, extra low voltage systems, machinery0
Mechanical/Environmental Data
Operating Ambient Temperature: -10℃ to +60℃
Mounting: Various options. See Ordering Information and drawings
Termination: 250’’(6.35mm)quick connects or solder terminals
| Current rating range | 5~30A |
| Input voltage rating | :125/250VAC; 32/50VDC |
| Interrupting Capacity | 125/250VAC; 32/50VDC |
| Typical life | 1,000 operations at 200% overload1,000 operations at 200% overload |
| Insulation co-ordination | Rated impulse withstand voltage 2.5kV Rated impulse withstand voltage 2.5kV |
| Dielectric Strength | > 1.500VAC/min. |
| Insulation Resistance | >100MOHM (DC 500V) |
| Degree of protection | Terminal area IP00, operating area IP40 |
| 88 series | 92 series |
94n series |

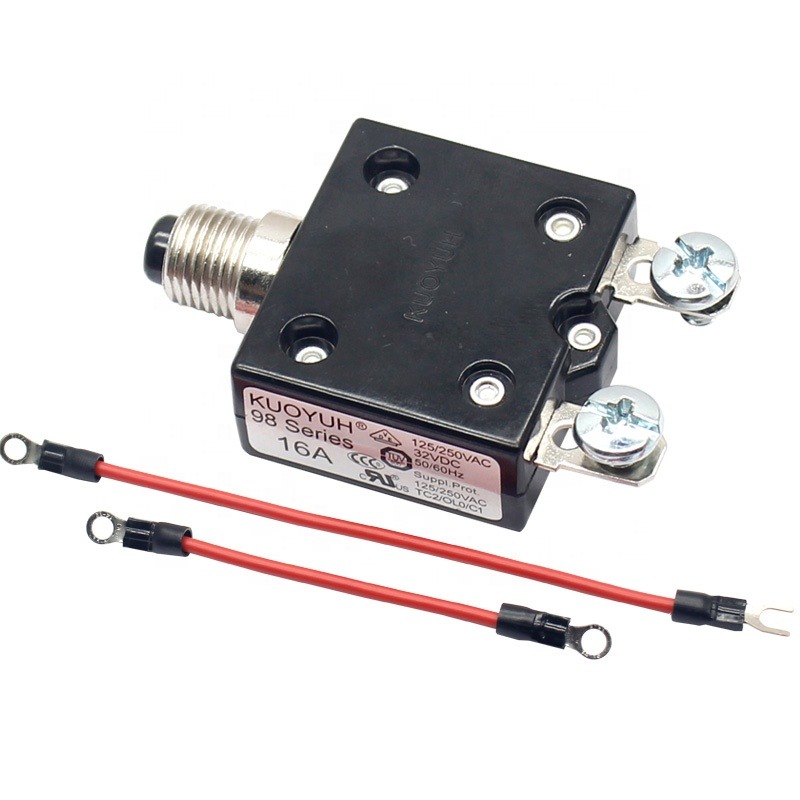

| 98 series | ar series |
91 series |
DongGuan Onegol Electronics Co.,Ltd is located at the famous economically developed cities-DongGuan City, Guangdong Province China, We can provide all kinds of rocker switches,,push button switches, toggle switches, micro switches, key switches, tact switches, dip switches, auto switches, indicator lights, fuse holders, power sockets, and customizable power cord, wire harness and ect. . Most of our products have been passed safety certifications as UL, DEV, CE, CCC, CQC. And all products are made with RoHS compliant materials.
Our products are exported to Europe, USA Mid east, Southeast Asia,etc.area.. We satisfy all our customers with advanced products, competitive prices, fast delivery and one-stop service. With a principle of being creative, advanced and honest, we are always improving our products and services to better satisfy you customers. We believe it's our mission to boost our customer's business, and then our customers will reward us with leadership sales and long-term relationships. Our promise--High quality, Rapid delivery, Favourable price.
Join us, Win-win!
|
|
