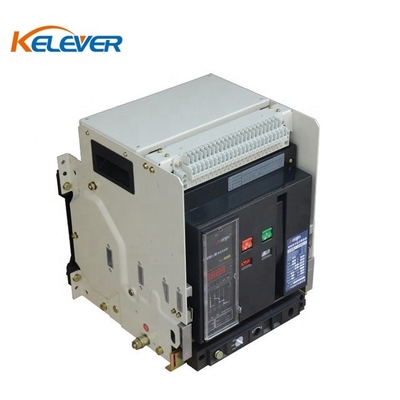

KCW1 Series Intelligent Air Circuit Breakers 3P Suction-Out Type / Fixed Type 1600A ACB 1000000000

1.0 Pieces
MOQ
KCW1 Series Intelligent Air Circuit Breakers 3P Suction-Out Type / Fixed Type 1600A ACB 1000000000
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: KCW1
Breaking Capacity: 1000000000
Rated Voltage: 400V/690V
Rated Current: 1600A
Protection: Li
Product Name: Intelligent Air Circuit Breakers
Rated Current: 1600A
Rated Voltage: 400V/690V
Rated Frequency: 50/60 Hz
Standard: IEC60947-1,IEC60947-2
Pole: 3P
Installation: Draw-out Type
Mechanical Life: 10000 Times
Type: Air
Poles Number: 3
Basic Infomation
Model Number: KCW1
Payment & Shipping Terms
Packaging Details: Packed in wooden box.
Supply Ability: 5000 Piece/Pieces per Month
Product Description
Detailed Images
Product Description
KCW1 Series Intelligent Air Circuit Breakers Fixed and Draw-out Type ACB

General of ACB
KCW1 series intelligent air circuit breakers(ACB) are applied for the network circuit of AC 50Hz,rated voltage 400V,690V and rated current between 630A and 6300A.Mainly used for distributing energy and protecting the circuit and power supply device anainst short-circuit,undervoltage,single-phase ground fault,etc.The ACB has intelligent protection function and the key parts adopt intelligent release. The release can make the accurate selective protection,which can avoid cutting off the power and improve the reliability of power supply.
The products conform with IEC60947-1,IEC60947-2 standards.

Type Designation
1.Rated current in scope of frame current
2000 Type-in:630A,800A,1000A,1250A,1600A,2000A;
3200 Type-in:2000A,2500A,3200A;
6300 Type-in:4000A,5000A,6300A;

2.Pole number
3-default,4-4 pole

3.Installation
Fixed type-horizontal,vertical
Draw out type-horizonal,vertical
Note:2000 type have vertical wiring,others are horizontal wiring

4.Control unit
L type-protection of overload long time-delay,short circuit short time-delay,short circuitt instantaneous and function of current flash columns instruction.
M type-protection of overload long time-delay,short circuit short time-delay,short circuitt instantaneous,earth fault and function of digital current display,and self-diagnosis,fault memory.
H type-protection of overload long time-delay,short circuit short time-delay,short circuitt instantaneous,earth fault and function of digital current display,and self-diagnosis,fault memory and load monitoring(communication).

5.Common use accessory
Shunt release-AC230V,AC400V,DC220V
Undervoltage release-AC230V,AC400V,underboltage instantaeous,undervoltage time-delay
Release(close)magnetic iron-AC230V,AC400V,DC220V
Electric operation mechanism-AC230V,AC400V,DC110V,DC220V
Auxiliary switch-standard type(4a4b),special type(5a5b,6a6b)
Note:a-normal open,b-normal close

6.Optional accessory
Mechnical inter-lock
one circuit breaker(1lock+1key)
two circuit breaker(steel cable inter-lock,connecting rod inter-lock,2lock+1key)
three circuit breakers(3locks+2keys,connecting rod inter lock)
Automatic power transfer system
Current transformer connected with neutral lead

Operation conditional
Specifications


Data
Overload Protection Data
Packing&Shipping
Related Products
After Sales Service
Any question,please feel free to tell us
E-mail:sales@kelever.com
Tel:0086-577-62715651
Mobile(WhatsApp/Wechat/Skype):+86 151 0577 1211
Company Introduction
Wenzhou Kunling Electric Co., Ltd. was built in 2005,we are the leading suppliers of electrical equipment in China. And specializing in OEM&ODM electric products for more than 10 years.Located in Liushi electrical capital of China, the City of Electrical Appliance, adjoining on the Wenzhou Airport 45 minutes, our cooperation owns the advantaged recourses in convenient transportation and basic facilities.The special production are as follows : Circuit Breaker,Contactor,Timer,Distribution boards,Surge Device,Fuse,Isolator Switch,Relay,Electrical Accessories,Tools,etc. . All the products have achieved the standard of IEC, and have passed ISO9001: the international quality control system attestation in 2000. Some of the products have passed the international attestations such as Semko, KEMA, GS, VDE, CB,CSA, UL, TUV,etc.

Enterprise Culture

Our mission: Create the first class enterprise and develop Kelever to benefit the human beings.
Our Core idea: Adopt kinds of experience and up to the best
Our Working policy: Mutual benefits to make progress
Our Working style: Initiative, preciseness, cooperation, effectiveness Our Sales idea: Service open market, search for mutual benefit
Our Manage idea: Use rules and morality to manage
Our Innovation idea: The foundation of development
Our Quality idea: The customer's satisfaction has our good market
Our Brand idea(Kelever): Provide the best products with the best quality
FAQ
Q: What is the price?
A: Pls contact with us on Alibaba/E-mail/Wechat/Skype/WhatsApp,all your enquiry will be replied as soon as possible.

Q: Do you have a catalogue?
A:Yes, we have product catalogues,if needed we can send to you one by one.

Q: Can I get a sample before the order?
A: Yes,we can provide free samples, but you need to pay the shipping charges.


Q:How long is the product warranty period? What can I do if the products have any problem during the warranty period?
A:Normally, warranty period is one year.You can send us your feedback as soon as possible, if it meets the replacement conditions,
we will help you to replace it for free.
