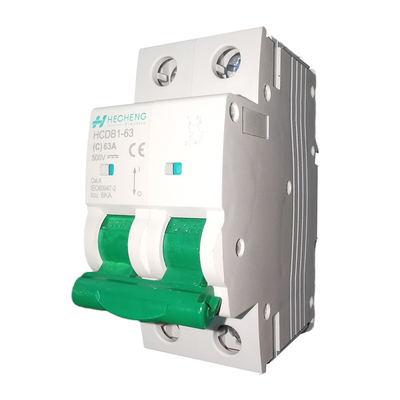

DC MCB PV Photovoltaic High Voltage Miniature Circuit Breaker 2P 500V 63A 6KA For Solar Photovoltaic CE Certificate RoHS Compliance

1000 Pieces
MOQ
$8.00(>=1000 Pieces)
Price
DC MCB PV Photovoltaic High Voltage Miniature Circuit Breaker 2P 500V 63A 6KA For Solar Photovoltaic CE Certificate RoHS Compliance
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HCDB1-63-2P-500V
Breaking Capacity: 6KA
Rated Voltage: 500V, 500V
Rated Current: 63A
BCD Curve: C
Rated Frequency (Hz): 0
Number Of Pole: 2
Protection: Other
OEM: Avaliable
Estimated Delivery Time: 30 Days
Sea Port: Ningbo/Shanghai
Product Name: High Voltage DC Circuit Breaker
Icu: 6KA
RoHS: Compliance
Application: Photovoltaic
Standard: IEC60947-2
Certificates: CE
Basic Infomation
Certification: CE
Model Number: HCDB1-63-2P-500V
Payment & Shipping Terms
Packaging Details: stardard box and carton packing,or according to customers' requirement
Supply Ability: 30000 Piece/Pieces per Month
Product Description
Brand
HECHENG
Item
High Voltage DC Circuit Breaker
Current type
DC
Rated Voltage
500V
Rated Current
63A
ICU
6KA
OEM
Available
Certificates
CE
Application
Photovoltaic
Standard
IEC60947-2
RoHS
Compliance


Product Application
The circuit breaker has the functions of short circuit protection, overload protection, control,
isolation and so on. It is suitable for terminal power distribution, civil construction, energy control, communication, and
infrastructure construction fields.

Product Benefits
* Overload and the short circuit protection function
* Rated short circuit breaking capacity up to 10 kA
* Non-polarity and Polarity both available
* Rated Current In up to 63A
* Rated Voltage up to 1000V
* Designed for PV, energy storage and other DC applications
* AS 60947.3:2018 and IEC 60947.1:2015 standard



Model Name



Specification

Pole
1P
2P
3P
4P
Rated Working Voltage Ue
250VDC
500VDC
750VDC
1000VDC
Frame Current
63A
Rated Current In
63A、50A、40A、32A、25A、20A、16A、10A
Rated Insulation Voltage Ui
500V
Rated Impulse Withstand Voltage Uimp
6kV
Tripping Characteristics
B/C
Tripping Type
Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu
6kA
Rated Service Short-Circuit Interrupting Capacity Ics
6kA
Electrical Life
Actual
2400 Cycles
Standard
300 Cycles
Mechanical Life
Actual
10000 Cycles
Mechanical Life
Standard
9700 Cycles
Overvoltage Category
Ⅲ
Pollution Degree
3
Ingress Protection
IP40; Wiring port IP20
Resistance to humidity and heat
Class 2
Relative Humidity
≤95%
Vibration
Acc. to IEC60068-2-6
Shocks
Acc. to IEC60068-2-27
Terminal capacity
2.5~35mm²
Fastening Torque of Terminals
2.0～3.5 Nm
Ambient Temperature
-30℃~70℃
Storage Temperature
-40℃~85℃
Installation Method
DIN
Elevation
≤2000m
Dimension
Width*Height*Depth: 18mm*87.5mm*76mm
Weight
0.12kg/Pole
Q1：Can I get a sample for testing?
A1：Yes, we offer free sample, you can pick the parcel up with your shipping account.

Q2: Can I print my logo on the products?
A2: Yes, OEM and ODM are available.

Q3: How can I get the after-service?
A3: If quality problems happen we promise re-send the item.

Q4: How about delivery time of the order?
A4: Usually, about 30 days after getting deposit.

Q5: How about payment terms?
A5: 30% deposit, the rest payment balance against B/L copy.
