Zhejiang Chinehow Technology Co., Ltd. is a new but outstanding company that is engaged in the research, production and sales of circuit breakers for equipment protection.
Since the establishment in 2004, persisting in the development concept of self-research and innovation, till now, we have developed several series of products, such as CVP-SM and CVP-TH and CVP-FR series.We gather a lot of talents in different fields, including electric appliances to en-power the ability of production research. We have achieved a lot of research fruits. The main technological index approaches the international level. Meanwhile, the company's management and efficiency of labor and conservation of resources have been improved.Our breakers with their precise tripping and stable performance and high quality have been accepted by many generator set manufacturers and communication equipment manufacturers.
Our leading products, series of CVP-SM and CVP-TH and CVP-FR, have obtained many national technical monopolies, and we have achieved ISO9001:2000, CE, TUV, UL, CSA and RoHS certifications.The breakers with the good performance are applied in the fields of industrial automation, medical treatment, communication, data processing, public transportation, UPS, and signal transmission.
Our breakers meet the standards of GB17701-1999, IEC60934:1993 and C22.2. Nowadays, with the dynamic development of science and technology, the people of Chinehow Company abide by the people oriented management concept, and follow the guide of the technical innovation combining the concept innovation, management innovation, and technical innovation.
We persist in the customer-centric concept to promote customers' satisfaction. With our utmost efforts on lasting innovation, lasting development, and lasting improvement, we are struggling to make the brand of Chinehow one of the internationally well-known brands.
| Number of Poles | 1,2,3,4 poles |
|
CURRENT |
Examples only. Any rating possible, from 0.1-200A.
|
|
MAXIMUM |
B0:80V DC,Bottom Positive |
| VOLTAGE COIL | 6V DC,12V DC;120V AC |
|
AUXILIARY SWITCH |
A:Auxiliary Switch T:Trip Alarm AT:Auxiliary Switch & Trip Alarm |
| INSULATION RESISTANCE | ≥100MΩ at 500V DC |
| DIELECTRIC STRENGTH | 1500V,50/60Hz between terminals for eletrical 50/60Hz |
|
RESISTANCE/ |
The value between line and load terminal under ON status |
| ENDURANCE | Mechanical life is 10k cycles(6 times operation per min.)and electrical life is 6k cycles at rated current and voltage |
| TRIP-FREE | The circuit breaker will tripped inside even if the handle forcibly held in the ON position when overload |
| TRIP INDICETION | Handle is in OFF position when overloaded.For mid-trip,handle is in middle position when overloaded |
| TEMPERATURE OPERATION | -40℃ to +85℃ |
| RECOMMENDED TORQUE | #6-32 or M3 mounting inserts 0.8-1.0 Nm; #8-32 or M4 screw terminals 1.4-1.7 Nm; #10-32 or M5 screw terminals 1.7-2.3 Nm; #1/4-20 or M6 screw terminals 3.4-4.0 Nm |
| MAXIMUM POLES | 4 Poles |
| MOUNTING TYPE | M3 screw, 6-32 screw |
| TERMINALS | M5 stud,M6 stud,push-in,screw,double(Q.C),clip terminals |
| ACTUATOR | long handle,angle rocker,flat rocker,flat rocker(with lock) |
| COLOR OF CASE | black,White |
| STANDARD | EN60934,UL1077,GB17701,UL489A |
| All CURVES | Curve data shown represents breaker response at ambient temperature of 77°F (25°C) with no preloading. Breakers are mounted in standard wall-mount position. On 50 amp and less current ratings, the minimum inrush pulse tolerance handling capability is 12 times the rated current on standard delays and 25 times the rated current on high inrush delays. These values are based on a 60Hz 1/2 cycle, 8.33 ms pulse. High inrush delays should be for applications with high initial surge currents of short duration such as switching power supplies, highly capacitive loads and transformer loads. |

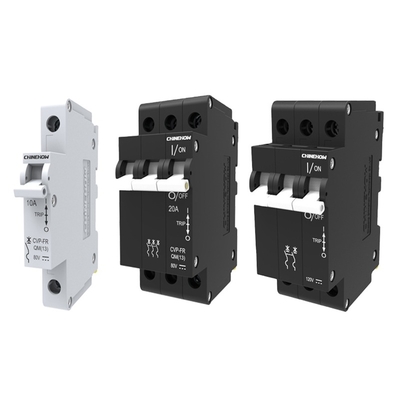

CVP-QM hydraulic magnetic circuit breaker is used in AC 230/400V or DC 80V and below power system,rated working current of 0.1-50A,provide protection from overload,short-circuit,also could be used to make and break the circuit not frequently.The breaker could be widely used for equipments provide protection of circuit,power equipment,communication equipment,railway transportation system,telecommunications systems,medical equipment,telecommunication power and UPS equipment and industrial automation system against overload current and short-circuit current.
Q 1. What's the payment term?
We accept T/T,Money Gram,Cash.
Q 2. What's the delivery time ?
We deliver 20'GP qty of this circuit breaker within 20 days.
We deliver 40'HQ qty of this circuit breaker within 40 days.
Q 3. What is the standard of package?
Standard export package.
Q 4. What is the warranty ?
We offer 3 years warranty for this circuit breaker.
Q 5. Are your trading company or factory ?
We are trading company&have own factory..
Q 7. What kind of certifications you have ?
We have TUV,CE, ISO9001,UL,CSA,RoHS,CCC certification.
Q 8.Which market do you already sell?
We already cooperate with Europe, South America, Asia, Middle east, Africa etc.
