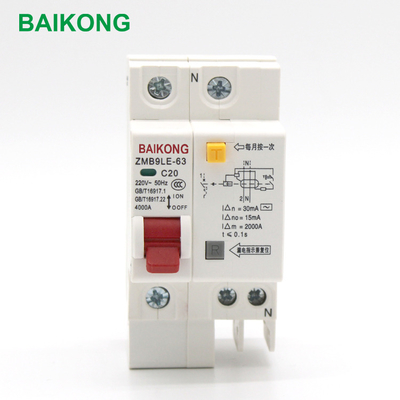

Plastic Transparent Smart Circuit Breaker Mini Miniature Circuit Breaker Mcb 1P 2P 3P 4P Earth Leakage

1.0 Pieces
MOQ
Plastic Transparent Smart Circuit Breaker Mini Miniature Circuit Breaker Mcb 1P 2P 3P 4P Earth Leakage
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: DZ47-63
Type: Magnetic
Poles Number: 1
Rated Voltage: 380V
BCD Curve: C
Rated Frequency: 50/60hz, 50/60Hz
Name: MCB Miniature Circuit Breaker
Material: Plastic, Metal
Color: White, Customized
Pole: 1P, 2P, 3P, 4P
Product Certification: CCC
Rated Voltage: AC100V AC110V AC220V AC250V AC380V AC450V AC750V AC1000V
Rated Current: AC/DC
Product Name: MCB. Miniature Circuit Breaker
Rated Current: 1A-100A, According To Your Request
Basic Infomation
Certification: CCC
Model Number: DZ47-63
Payment & Shipping Terms
Packaging Details: standard exporting carton Standard export wooden cases
Supply Ability: 1000 Piece/Pieces per Month
Product Description
Recommend Products
Product Overview

Baikong MCB Circuit Breaker

Plastic shell type circuit breaker is suitable for AC 50Hz, rated voltage to 400V, rated current not more than 63A in the
distribution line; It can also be used in distribution lines with dc voltage up to 110V, dc voltage up to 220V, rated dc current
up to 63A. Circuit breakers can be used in distribution lines for short circuit protection, and can also be used as infrequently operated switches and disconnecting switches (used for maintenance of lines and equipment).
This product conforms to GB/T 14048.2 and has obtained CCC certification.
1. The circuit breaker has an overcurrent protection pole and a switching neutral pole, and is equipped with a shunt trip device. 2. The switching neutral pole is turned on first and then disconnected than the overcurrent protection pole; 3. High rated breaking capacity, up to 6kA; 4. The operating mechanism of the circuit breaker is a free trip mechanism with energy storage, and the contacts are closed quickly, which overcomes the adverse effects caused by the speed of manual operation of the handle, and greatly improves the use of the product. 5. Service life; in normal operation, the contact can only stay in the closed or open position; 6. Combined contact terminal with finger protection, high safety performance 7. The shunt trip unit is composed of drive components such as thyristor and electromagnetic trip unit; 8. The shell and parts are made of imported high flame retardant, high temperature resistant and impact resistant plastics.
PRODUCT SPECIFICATIONS
Dc Circuit Breaker 220V 6A 10A 16A 20A 25A 32A Din Rail Mounting Miniature Household Air Switch Mcb Miniature Circuit Breaker
Item
Parameter
Rated current(In)
1A，2A,3A,4A,5A,6A,10A,15A,16A,20A,25A,32A,40A,50A,60A,63A

Poles
AC
1P,2P,3P,4P
DC
1P,2P
Frequency
50/60HZ
Nominal insulation voltage(Ui)
500V
Rated impulse withstand voltage(Uimp)
6KA/10KA
Rated operational voltage
AC100V AC110V AC220V AC250V AC380V AC450V AC750V AC1000V
Company Profile
Sichuan Baikong Eletrical Tech Co.,Ltd
Sichuan Baikong Electric Technology Co., Ltd. originated from the phrase "100% diligence, making electricity safe and controllable". Baikong Electric was born and developed well. Sichuan Baikong Electric Technology Co., Ltd. is an enterprise integrating production, research and development, sales, import and export services with high and low voltage power distribution equipment and automation equipment.
Sichuan Baikong Eletrical Technology Co.,Ltd
Customer Feedback
Product Packaging
FAQ
1. What’s the difference between type C and type D micro circuit breaker?
A: Type C is mainly used for power distribution control and lightling protection.
Type D is mainly used for motor protection.

2.What kinds of trip curves are common miniature circuit breakers? What are the short-circuit tripping multiples respectively?
Type B: 3-5 In Type C: 5-10 In or 7-10 In ( according to different product)
Type D:10-14 In

3. Are you a supplier or a factory?
We are a factory located in Pengzhou, Sichuan province. Is a specialized production of electrical equipment factory, founded in 1995. Many of our exporting countries have more than ten years export experience.

4. What is its lead time for samples and mass production?
Within 10 work days for samples and 30 days for mass production.

5. Can I customized LOGO?
Welcome. Please inform us formally before our production and confirm the design firstly based on our sample. We have professional R&D team to support best service, and give you best suggestions.

6. Can I visit your factory and company office?
Sure, Our factory at Pengzhou city, Sichuan Province, China.
Welcome visit our factory any time !

IF YOU NEED MORE INFORMATION DON'T HESITATE IN CONTACTING US !
