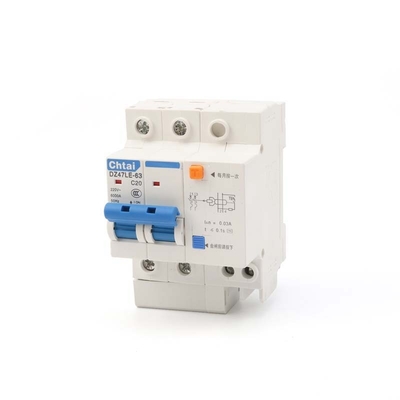

Number | DZ47LE-63 |
Rated current(In) | 6A,10A,20A,25A,32A,40A,50A,63A |
Poles | 1P+N,2P,3P,3P+N,4P |
Material | PA66 |
Rated voltage(Ue) | 230/ 400V AC |
Rated frequency | 50/60Hz |
Rated breaking capacity | 6KA |
Thermo-magnetic release characteristic | B C D |
Electrical Life | 10000 |
Mechanical Life | 20000 |
Working Temperature | -5℃ to 40℃ |
Protection degree | IP20 |
Type | lighting "C"or motor"D" |
protection | overload，short circuit， earth leakage(over voltage) protection |
installation | Rail Installation |
Standard | IEC60898/GB10963.1 |
Certificate | CCC CE |
OEM ODM | avaiable |
Rated Voltage (V) | Rated Current of Case Inm(A) | Poles | Rated Current In(A) | Rated Short Circuit Breaking Capacity Icu(KA) | Rated Leakage Breaking Current (mA) | Rated Leakage not Breaking Current (mA) | Rated leakage operation time（s） | Release type |
Breaking Capacity Icu(KA)/COS | ||||||||
230 | 32(63) | 1+N | 6/0.7 | 30 | 15 | <0.1 | C | |
230 | 32(63) | 2 | 6,10,16, | 6/0.7 | 50 | 25 | <0.1 | C |
400 | 32(63) | 3 | 20,25, | 6/0.7 | 100 | 50 | <0.1 | C |
230/400 | 32(63) | 3+N | 32,40,50,63 | 6/0.7 | 300 | 150 | <0.1 | C |
400 | 32(63) | 4 | 6/0.7 | <0.1 | C |
