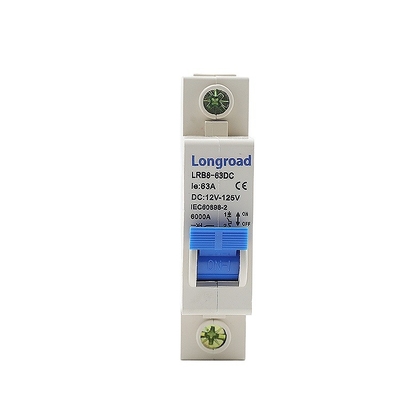

Product description
This MCB are used in DC 12V~120V power supply, it can provide short circuit of electric vehicle power supply and overload short circuit of motor over flow voltage protection, to ensure the safety of the vehicle and personnel.
Main technical parameter
|
Standard |
IEC60898-2 |
|
Pole |
2P |
|
Rated voltage(Ue) |
12~120V DC |
|
Rated current(In) |
1,2, 3, 6, 10, 16, 20, 25, 32,40, 50,63A |
|
Short-circuit Breaking Capacity |
6000A |
|
Rated insulation voltage(Ui) |
1000V DC |
|
Rated impact voltage Uimp |
4kV |
|
Mechanical life |
2000 |
|
Electric life |
4000 |
|
Isolation function |
Yes |
|
Protection degree |
IP20 |
|
Temperature |
-25ºC ~+70ºC |
|
Muggy |
Type 2 |
|
Shake degree |
2.6 IEC60068 |
|
Impact degree |
2.27 IEC60068 |
Q1: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A1: Yes, We have product catalogue. Please contact us on line or send an Email to sending the cata-logue.
Q2. What advantages do you have?
A2. LONGROAD is a direct Manufacturer in Wenzhou China, we have professional developing, mar-
keting production team to offer you the most competitive price and best service.
Q3. What's your main product?
We have two product project, low voltage electrical.
Q4. Could you print our own logo?
A4. Yes, Our company are available for Retail Wholesale& OEM&ODM.
Q5. How long is the quality guarantee?
A5. 24 month warranty, our products are 100% inspection.
Q6. How long is the deliver time?
A6. It usually takes about 3-5 working days for sample order and 15-30 days for big order.
Q7. What is your payment terms?
A7. Our Payment term is T/T, Aliexpress, Western Union, U/C at sight.
Q8. Any certification of your company or product?
A8. We have ISo 9001. CE. CB sEMKO. SAA TUV. ccc.
