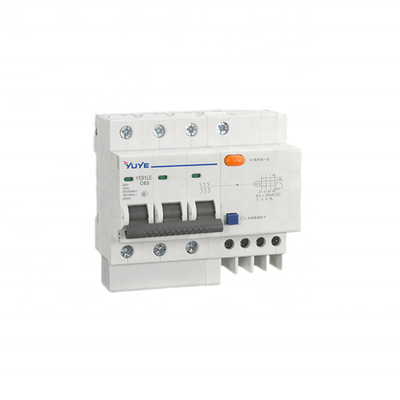

Product details:
|
Name |
Details |
|
Enterprise code |
Shanghai Yuhuang Electric Co.,ltd |
|
Product category |
Miniature Circuit Breaker |
|
Design code |
1 |
|
Current rank |
63 |
|
Pole |
1P,2P,3P,4P |
|
Using code |
C=Light distribution,D=Motor protection |
|
Rated current |
3A~63A |
Technical parameter:
|
Rated voltage(V) |
Pole |
Rated current(A) |
Rated short circuit breaking capacity |
|
|
Predictive current of tests(A) |
Power factor |
|||
|
230 |
1 |
3,6,10,16,20,25,32,40 |
6000 |
0.65~0.70 |
|
230/400 |
1 |
0.65~0.70 |
||
|
400 |
2,3,4 |
0.65~0.70 |
||
|
230 |
1 |
50,63 |
0.75~0.80 |
|
|
230/400 |
1 |
0.75~0.80 |
||
|
400 |
2,3,4 |
0.75~0.80 |
||
Remark:
1. Mechanical lifetime:20000 times(off-on)
2. Mechanical lifetime:4000times.
3. Anti humid heat type:Ⅱ(The temperature is 55 degrees,the relative humidity is 95%).
4. Writing with clamp terminal,cross-section of cable can be up to 25 mm².
Outline and installation dimension:
