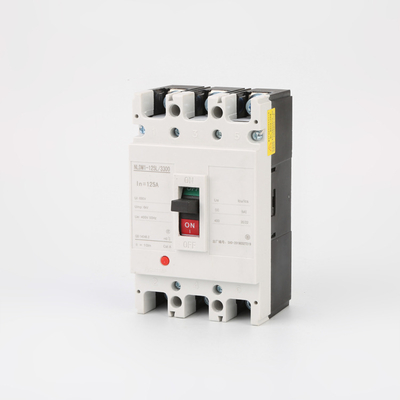

Name: PC/ABS Eberry ERM1 Series Micro Molded Case Circuit Breaker 1p 2p 3p 4p
Brand: PC/ABS Eberry ERM1 Series Micro Molded Case Circuit Breaker 1p 2p 3p 4p
SKU: ERM1
Price: 1 USD
Availability: InStock
Rating: 4.8 (105 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: ERM1

Rated Voltage: AC400V, AC690V

Product Name: Moulded Case Circuit Breaker

Protection: Overload And Short Circuit

Material: PC/ABS

Type: Mini

Poles Number: 3,4

Rated Frequency: 50 Hz/60 Hz

Basic Infomation

Model Number: ERM1

Payment & Shipping Terms

Supply Ability: 10000 Unit/Units per Month

Product Description

• Application Scope

- ERM1 series moulded case circuit breaker ( hereinafter referred to as the circuit breaker ),is suitable for occasional conversion and motor start ( Inm<=630A type and below )under the circuit of AC 50Hz/60Hz,rated insulation voltage of 690V(500V for ERM1-63),rated operational voltage of 400V and below and rated current to 1250A.The circuit breaker has protection function to avoid overload ,short circuit and under-voltage,for assuring the prevention from damage of circuits and power-supply devices . - The circuit breaker can be classified into three types of L (standard),M (moderate high breaking )and H (high breaking )according to the rated limit short circuit breaking capacity ( Icu).It has features of small volume ,high breaking and short flashover ,vibration resistance ,etc . - It can can be installed vertically (vertical assembly )or horizontally (horizontal assembly ).It has isolation function. - The circuit breaker conforms to requirements of IEC 60947-2 and GB14048.2 standards.

• Normal Working Environment

- Altitude<=2000m - Ambient temp: -5°C ~ +40°C - Able to tolerate the influence of salt mist and oil mist - Pollution level: 3 - Maximum gradient is 22.5° - In the medium without explosion danger and the medium has not enough corrosion to metal,to destroy the insulation gas and conductive dust. - In the place without invasion of rain and snow. - Installation category III.

• Protective Characteristics Motion performance of release - For power distribution

Rated operational current of release(A)	Thermal overload release(fiducial temperature 40°C)			Current action of electromagnetic release(A)	Remarks
Rated operational current of release(A)		1.05(cold state) Non-actuation time(h)	1.30In(thermal state)actuation time(h)	Current action of electromagnetic release(A)	Remarks
10<In<=63	>=1	<1	10In+-20%	Distribution protective type Notes:1250A for 7In+-20%
63<In<=100	>=2	<2	10In+-20%
100<In<=1250	>=2	<2	5In+-20% 7In+-20% 10In+-20%

Notes:Rated current is less than 160A and has no 5 In current magnetic release.

- For motors protection

Rated operational current of release(A)	Thermal overload release(fiducial temperature 40°C)					Current action of magnetic release(A)
Rated operational current of release(A)		1.0In(cold state)Non-actuation time(h)	1.20In(thermal state)actuation time(h)	1.50In(thermal state)actuation time(h)	7.20In(cold state)actuation time(h)	Current action of magnetic release(A)
10<=In<=630	>=2	<=2	8min	6S<Tp<=20S	12In+-20%
