| Part Number | E9A-110B-99-SP |

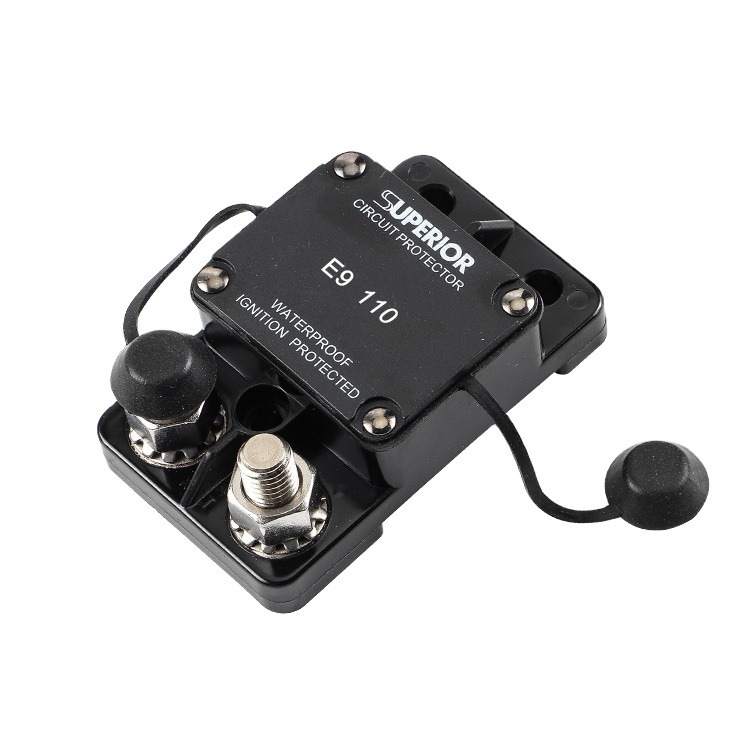

| Description | Hi-Amp Circuit Breaker 3/8" Stainless Steel Studs, Wide Surface Mount Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine applications. Others include battery charger and DC audio system. |
| Family | Thermal Circuit Breakers |
| Category | E9 |
| Series | E9A |
| Voltage | up to 72Vdc |
| Rated Current | 110A |
| Mounting | Wide Surface Mount |
| Reset Type | T1, Auto Reset |
| Operating Temperature | -32ºC (-25ºF) to 82ºC (180ºF) |
| Interrupt Capacity | 2,500A @ 14Vdc (25-200A) 1,500A @ 48Vdc (25-200A) 1,500A @ 14Vdc (225A-300A) * Consult Factory |
| Dimension | Length: 80 Width: 48.5 Height: 26.8 Unit: mm |
| Weight | 136 g |
| RoHS | Y |
| Standard Pack | 100 |
| Regulatory Sepcification | Interrupt Capacity: SAE J1625; SAE J553, ABYC-E11 Ignition Protected: SAE J1171 Endurance: SAE J1625; SAE J553 Dust and Waterproof: IP67 Shock, Vibration, Corrosion, Humidity: Mil-STD-202 |
| HS Code | 85362000 |
| Termination | 3/8" Stainless Steel Studs |
| Storage Temperature | -34ºC (-30ºF) to 149ºC (300ºF) |
Select a low amp or high amp thermal circuit breaker for your commercial
applications, transportation equipment, marine, medical, and other power
supplies:
1.Circuit breaker can do is protect the circuit from a high current short circuit.
2.Through its thermal trip it can protect the circuit from overload conditions.
A circuit breaker will trip if too large a draw or current flow occurs across a
thermal shunt inside.
3.Easy for mounting.
4.Trip-off time is customizing and adjustable according to customers' demands.
5.The design allows the thermal circuit breaker to be extremely cost-effective while
remaining durable and reliable.
