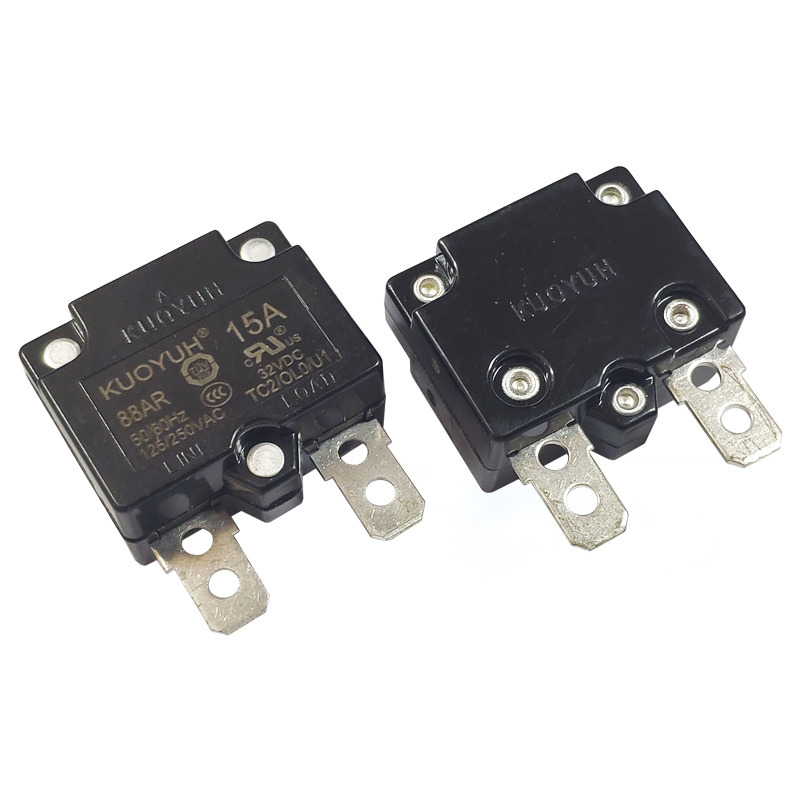

Current rating range:3~30A
Input voltage rating :125/250VAC; 32/50VDC
Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)
Typical life : 1,000 operations at 200% overload
Insulation co-ordination:Rated impulse withstand voltage 2.5kV
Dielectric Strength:> 1.500VAC/min.
Insulation Resistance:>100MOHM (DC 500V)
Degree of protection:Terminal area IP00, operating area IP40
Termination: 250’’(6.35mm)quick connects or solder terminals
200% of Rated Current: 5-30 sec Trip •
150% ofRated Current: Trip Within 1 Hour
Approval & File No Rated current Rated voltage
CUL UL E155159 3- 30A 125/250VAC; 50VDC
TUV SUD B15 09 58611 007 3-20A 125/250VAC; 32VDC
VDE 40036160 3-16A 125/250VAC
CSA 102199 3-16A 250VAC
IEC 60934 3-20A 250VAC
91 series
97 SERIES 94n SERIES
98 SERIES AR SERIES
