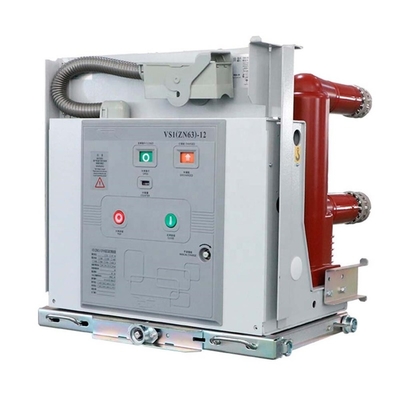

VS1-12 indoor high voltage vacuum circuit breaker applies to power system of rated voltage 12kv as a protective
and control unit for power grid equipment and industrial power equipment. It can equip with KYN28(GZS1),
XGN, GG-1A and other types of switchgear panels. Related products: isolated handcart, fuse handcart and
voltage transformer handcart.
|
No. |
Item |
Unit |
Data |
||||||||
|
1 |
Rated voltage |
kV |
12 |
||||||||
|
2 |
Rated frequency |
Hz |
50 |
||||||||
|
3 |
Rated insulation level |
1min power frequency withstand voltage |
KV |
42 |
|||||||
|
Rated lightning impulse withstand voltage |
KV |
75 |
|||||||||
|
4 |
Rated current |
A |
630 |
1000 |
1250 |
1600 |
2000 |
2500 |
3150 |
4000 |
|
|
5 |
Rated short-circuit breaking current Rated short-time withstand current (virtual value) |
kA |
20 |
20 |
20 |
||||||
|
25 |
25 |
25 |
25 |
||||||||
|
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
|||||||
|
40 |
40 |
40 |
40 |
40 |
40 |
||||||
|
50 |
|||||||||||
|
6 |
Rated short circuit making current Dynamic stability rated current |
kA |
50 |
50 |
50 |
||||||
|
63 |
63 |
63 |
63 |
||||||||
|
80 |
80 |
80 |
80 |
80 |
|||||||
|
100 |
100 |
100 |
100 |
100 |
100 |
||||||
|
125 |
|||||||||||
|
7 |
Rated short-circuit breaking current breaking time |
Times |
(above 40KA) |
||||||||
|
8 |
Rated short-circuit duration |
S |
4 |
||||||||
|
9 |
Rated operation sequence |
O-0. 3s-CO-180s-CO,O-180s-CO-180s-CO(above 40kA) |
|||||||||
|
10 |
Mechanical life |
times |
30000 |
||||||||
|
11 |
Rated breaking current of single capacitor bank |
A |
630 |
||||||||
|
12 |
Rated breaking current of back to back capacitor bank |
A |
400 |
||||||||
|
13 |
Maximum D.C componen 5 0 % |
||||||||||
