Home /Products/Single Phase Surge Arrester/Chint Surge Protection Device NXU-I+II Series 385V 25KA 1P 1P+N Single Phase Surge Protective Device Max SPD 1.5mm™; ²

Chint Surge Protection Device NXU-I+II Series 385V 25KA 1P 1P+N Single Phase Surge Protective Device Max SPD 1.5mm™; ²

1.0 Sets
MOQ
Chint Surge Protection Device NXU-I+II Series 385V 25KA 1P 1P+N Single Phase Surge Protective Device Max SPD 1.5mm™; ²
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: NXU-I+II-1P,1P+N
Type: Others
Number Of Pole: 1
Rated Voltage: 385V
Max Discharge Current: 50
Nominal Discharge Current: 25
Poles: 1P,1P+N
Frequence: 50/60Hz
Maximum Continuous Operational Voltage: 275V, 385V
Maximum Impulse Current(10/350μs)Iimp: 12.5KA
Nominal Discharge Current(8/20μs)In: 25KA
Maximum Discharge Current(8/20μs)Imax: 50KA/40KA
Level Of Protection Up: 1.5KV(for 275V), 1.8KV(for 385V)
Working Indication/Fault Indication: Green/Red
Remote Connection Capacity: Maximum 1.5mm²
Protection Degree: IP20
Basic Infomation
Model Number: NXU-I+II-1P,1P+N
Payment & Shipping Terms
Supply Ability: 5000 Set/Sets per Month
Product Description
Product Description

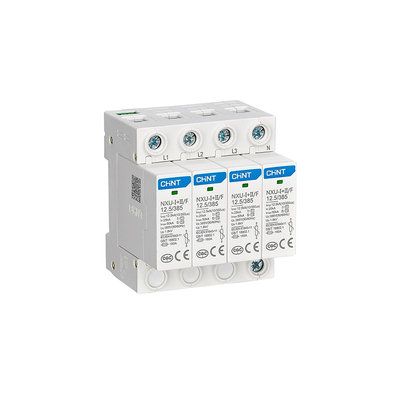

NXU-I+II Low-voltage Surge Arrester

Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage
The product is composed of two independent components: removable protective module 4 and base 2;
When the product is damaged, the part 3 will indicate; please replace the removable protective module 4 at once and there is no need to cutoff the circuits;
The part 1 is for maximum continuous operational voltage indication as well as avoiding replacement with wrong module.
Specification
Brand Name
Chint
Poles
1P,1P+N
Frequence
50/60Hz
Maximum continuous operational voltage
275V, 385V
Maximum impulse current(10/350μs)Iimp
12.5KA
Nominal discharge current(8/20μs)In
25KA
Maximum discharge current(8/20μs)Imax
50KA
Level of protection Up
1.5KV(for 275V), 1.8KV(for 385V)
Working indication/Fault indication
Green/Red
Remote connection capacity
Maximum 1.5mm²
Protection degree
IP20
