| Model | Rated Current (A) | Breaking Capability Grade | Tripping Type |
| NSX-100 | 6.3 12.5 16 20 25 32 40 50 63 80 100 | F: Practical Type N: Standard Type H: High Breaking Type NA: Isolation Type |
TM: Thermal Magnetic Trip MIC: Electronic Trip MA: Motor Protection Trip |
| NSX-160 | 63 80 100 125 160 | ||
| NSX-250 | 100 125 160 200 250 | ||
| NSX-400 | 160 200 250 300 320 350 400 | ||
| NSX-630 | 250 300 320 350 400 500 630 |
| Model | 100-250 | 400-630 | ||
| Number of Poles | 3P 4P | |||
| Control | Manual | Toggle handle, direct or extended rotary handle | ||
| Connections | Fixed | Front connection | ||
| Plug-in | Front connection,rear connection | |||
| ICE 60947-2 and EN 60947-2 The electrical characteristics as per ICE 60947-2 and EN 60947-2 | ||||
| Rated Current (A) | In | 40℃ | ||
| Rated Insulation Voltage (V) | Ui | 750 | ||
| Rated Impulse Withstand Voltage (kV) | Uimp | 8 | ||
| Rated Operation Voltage (V) | Ue | AC50/60Hz 690A | ||
| Utilization Category | A | |||
| Operation Performance | Mechanical | 8500 | 6000 | |
| Electrical | 1500 | 1000 | ||
| Protection | Overload protection,short circuit protection,earth leakage protection | |||
| Indication and Control Auxiliary | OF auxiliary switch, MX shunt control and MN under-voltage coil. | |||
| Model | Number of the poles | W×H×D(mm) Dimension |
(kg) Weight |

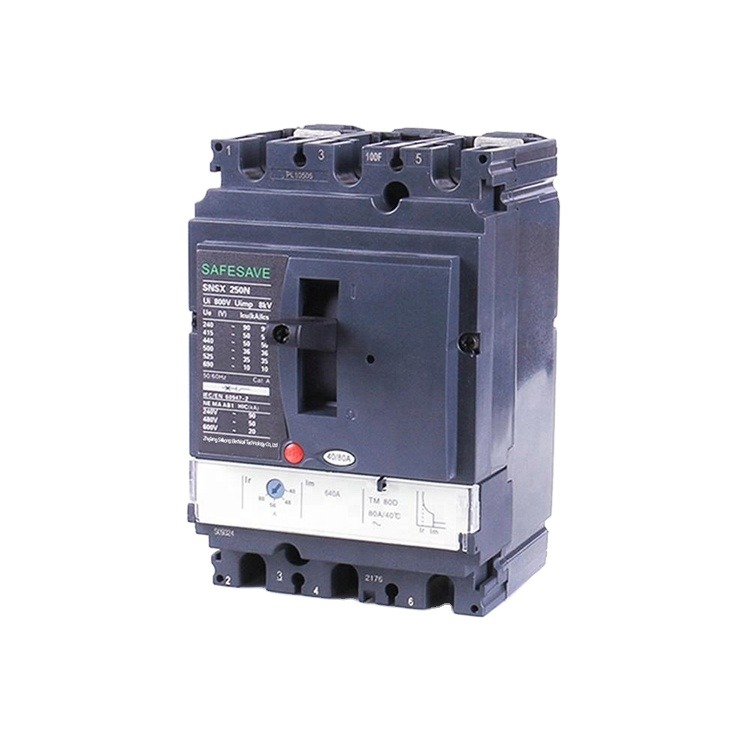

| SNSX100/160/250 | 3 poles | 105×236×86 | 2.5 |
| 4 poles | 140×236×86 | 3.2 | |
| SNSX400/630 | 3 poles | 135×355×110 | 8.8 |
| 4 poles | 180×355×110 | 10.8 |
Q1:Can I have a sample order?
A1:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2:What about the lead time?
A2:Sample needed 3-5 days, mass production time needed 1-2 weeks.
Q3:Do you have any MOQ limit?
A3:1pc for sample checking available.
Q4:How do you ship the goods and how long does it take to arrive?
A4:We usually ship by DHL, UPS, Fedex or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping for option.
Q5:Is it OK to print my logo on modified sine wave inverter?
A5:Yes. Please inform us formally before our production and confirm the design firstly based on the sample.
Q6:Do you offer quarantee for the products?
A6:Yes, we offer 18 months warranty.
Q7:Can I get one for sample?
A7:Yes, we accept sample order or trial order for testing first.
Q8:What's the price and MOQ??
A8:NO MOQ. Please just send us inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price.
Q9:What's you delivery time?
A9:It depends on your quantity, usually 1-3 days for sample order, but for batch order, it according to theactual situation.
Q10:How about your payment and shipment?
A10:Payment: We accept T/T, Western Union, Paypal etc. terms of payment.
Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc.express; for batch order, by sea or by air.
Q11:How about your warranty?
A11:We provide 1.5 and 2 years warranty for different products and whole life technical support.
